SP14 preamp 2018 build photos

photos from a couple of new builds this year . . .

NEW for 2019, a new remote control Khozmo for 4 input selection and 64 step volume,
same price as the older Khozmo that just did volume only.

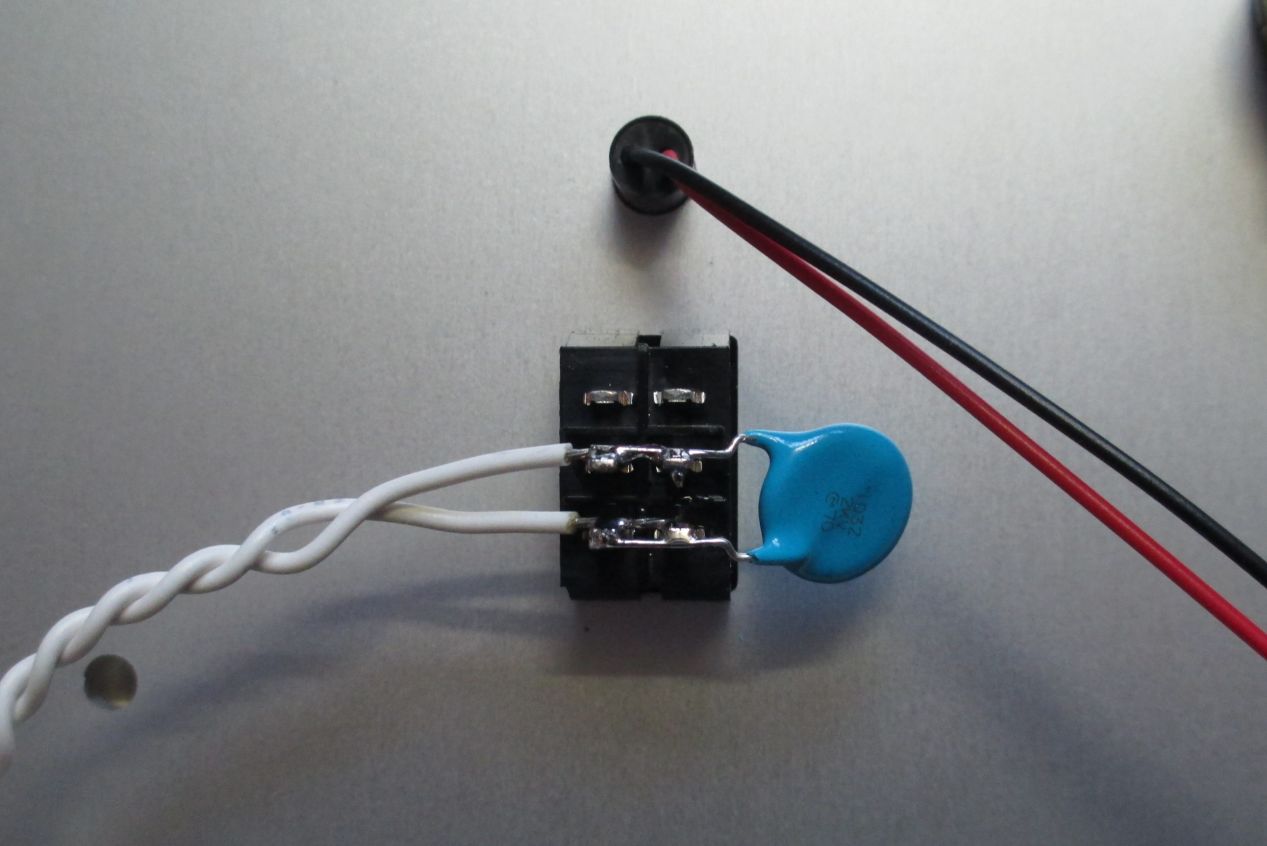

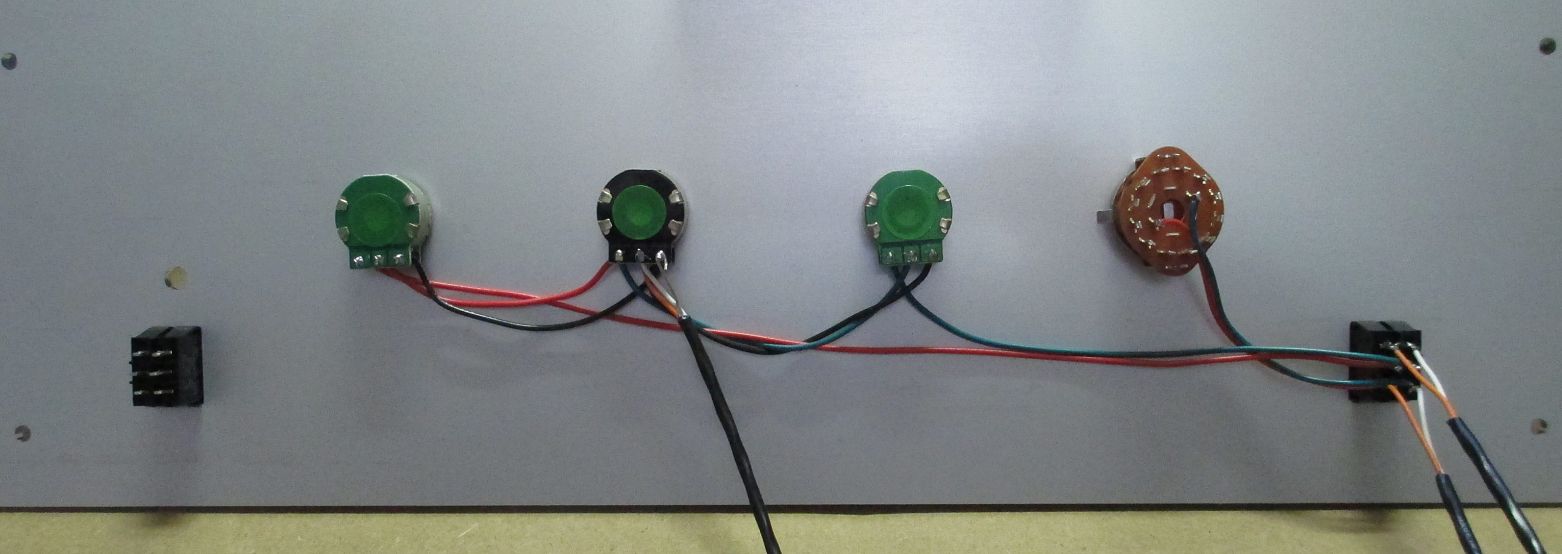

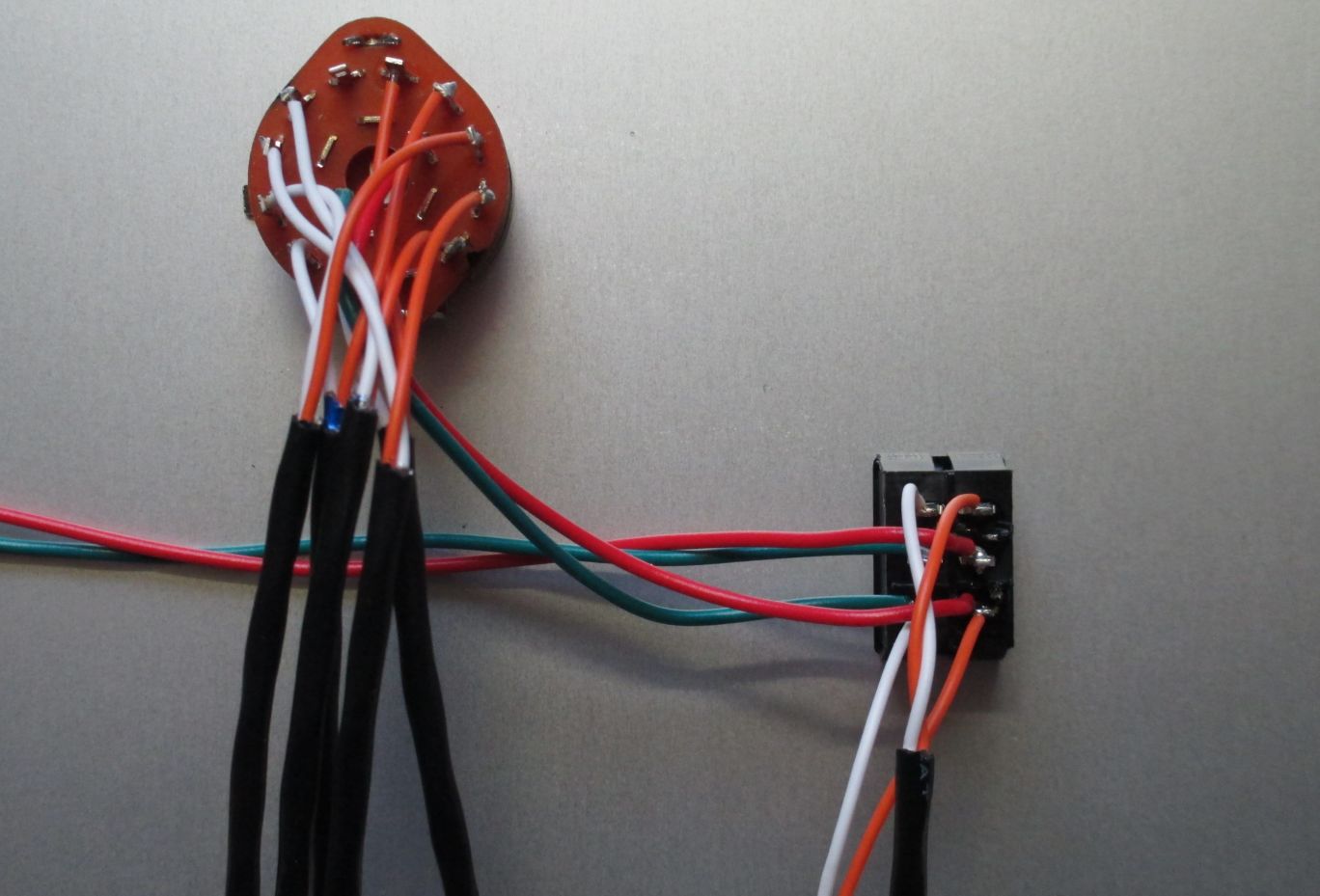

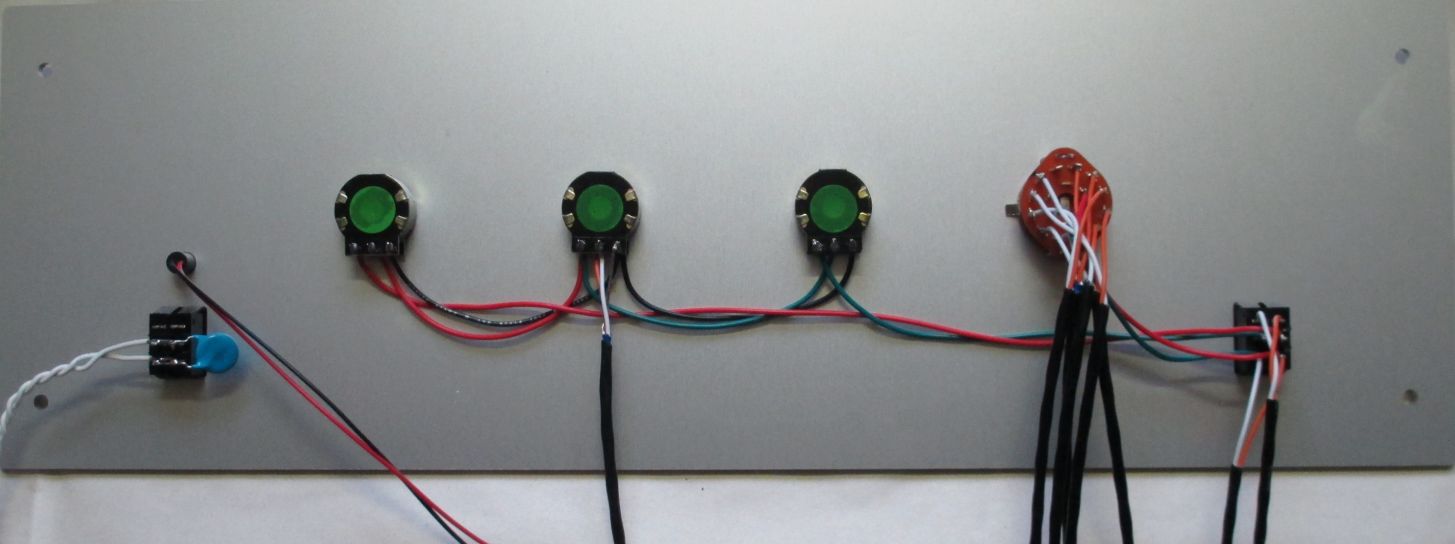

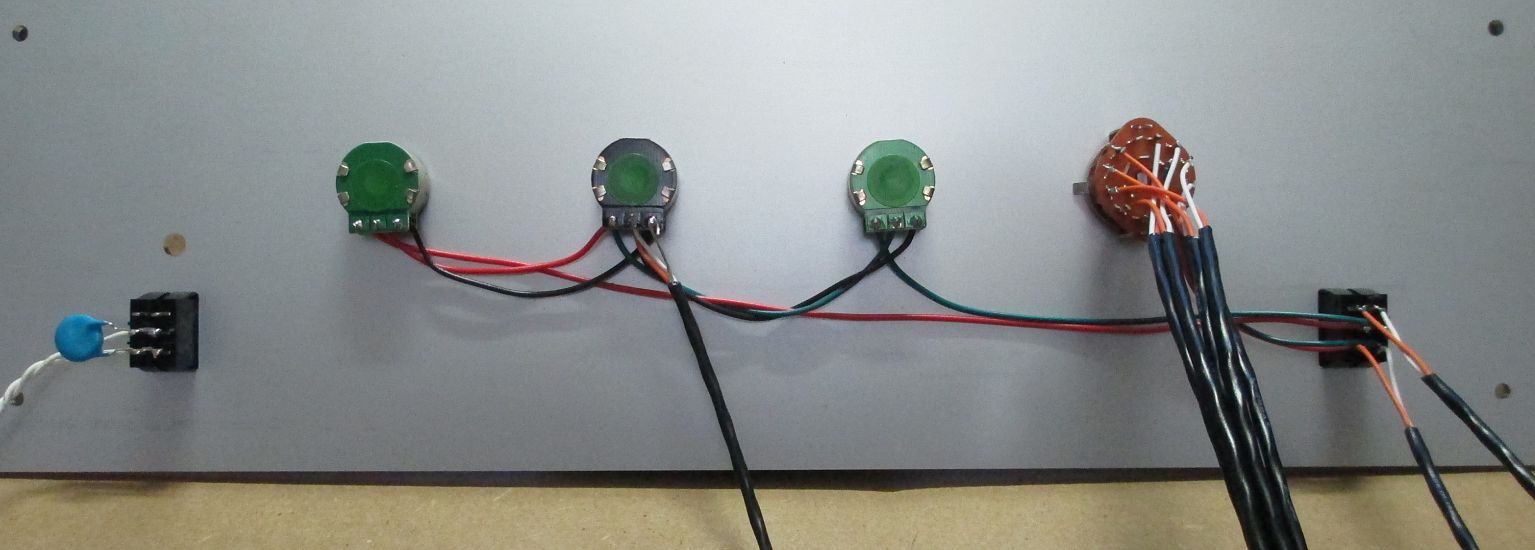

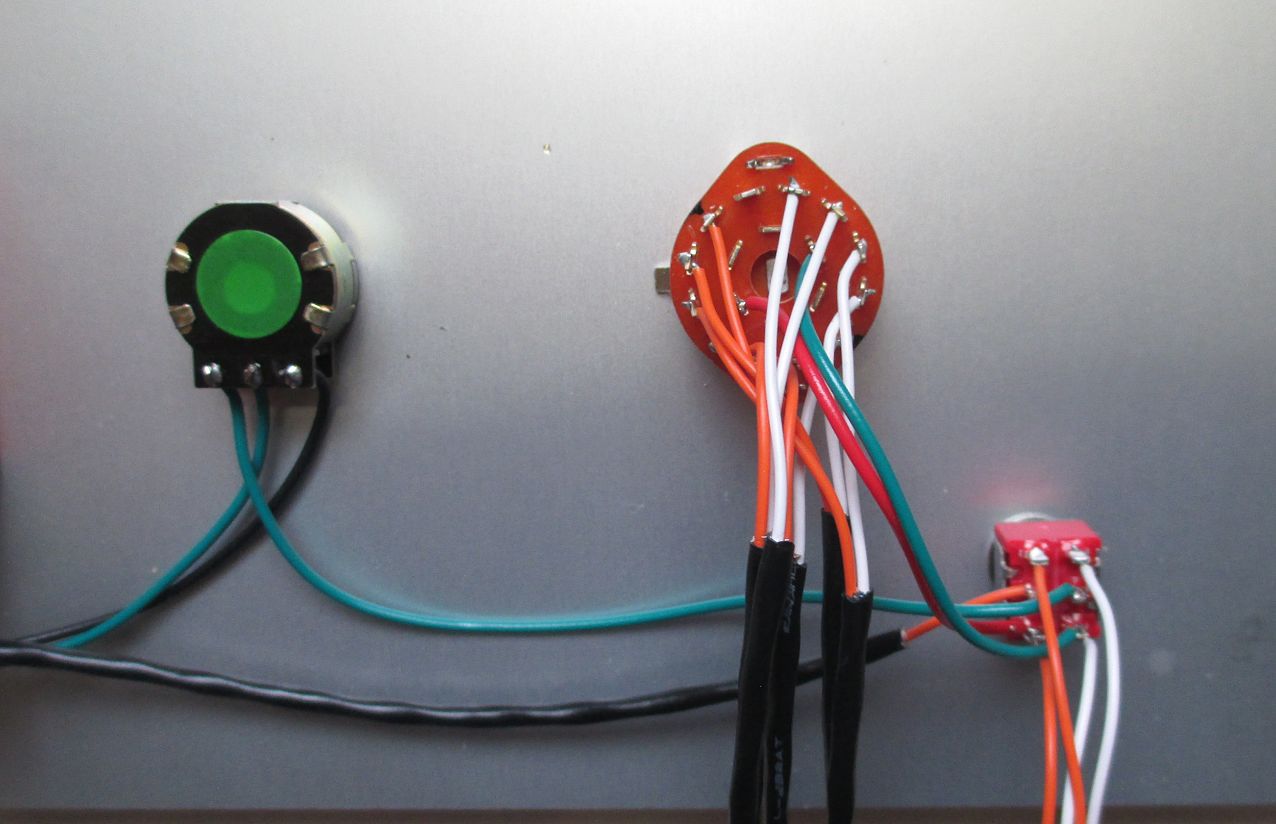

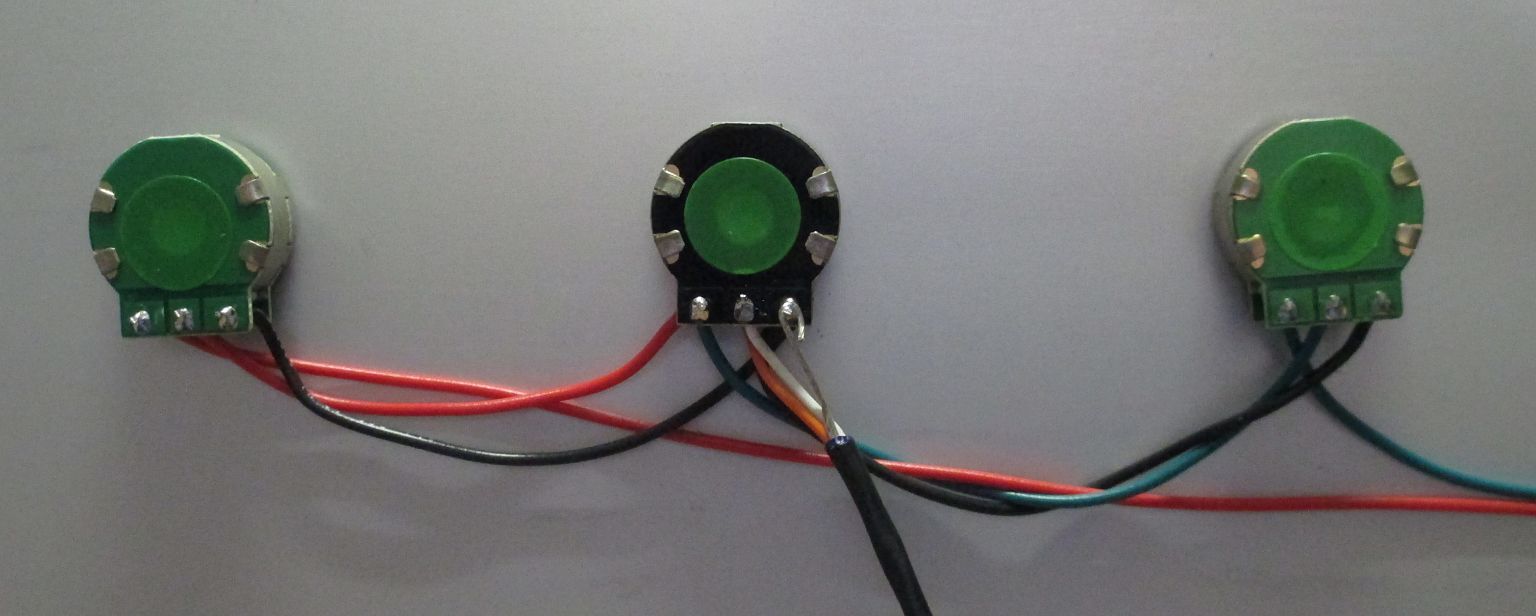

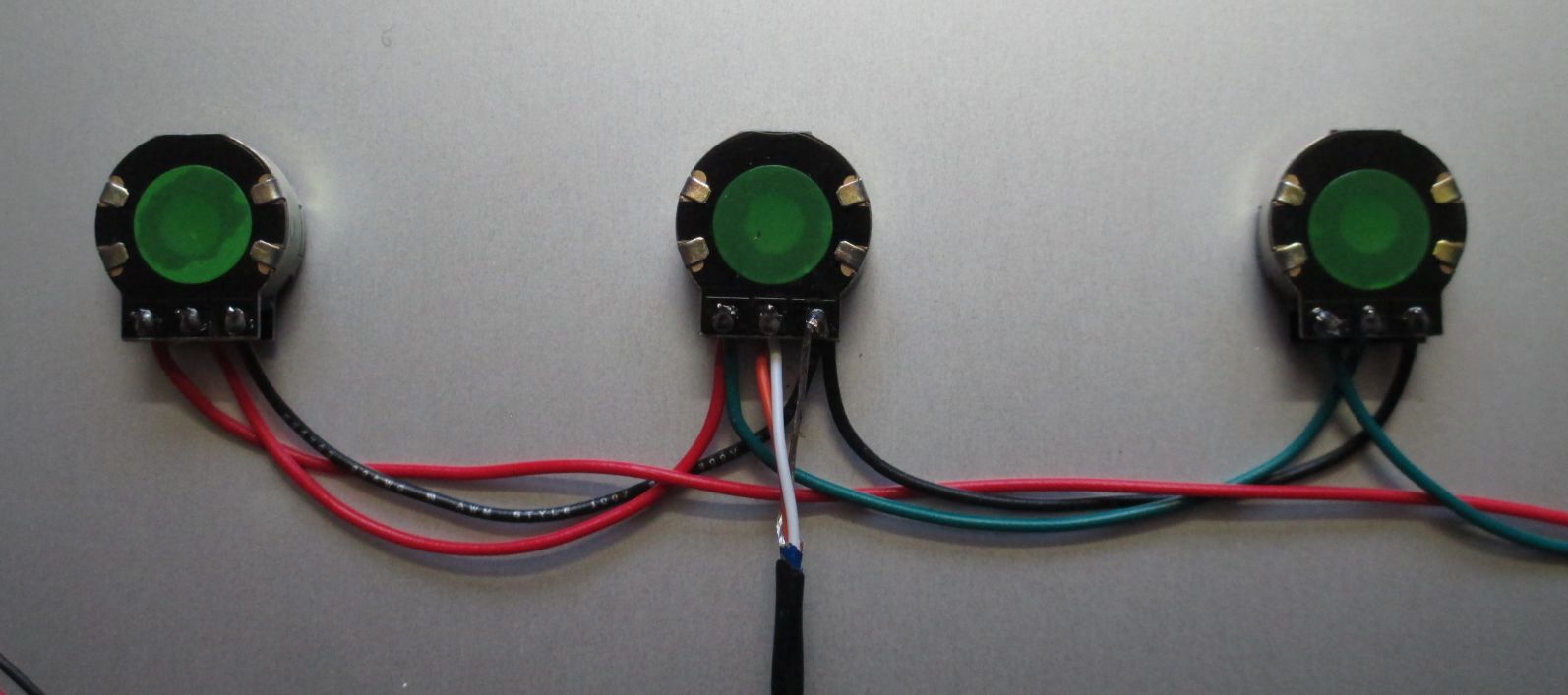

wire up front panel before attaching to chassis bottom


wire up front panel before attaching to chassis bottom


wire up front panel before attaching to chassis bottom


wire up front panel before attaching to chassis bottom

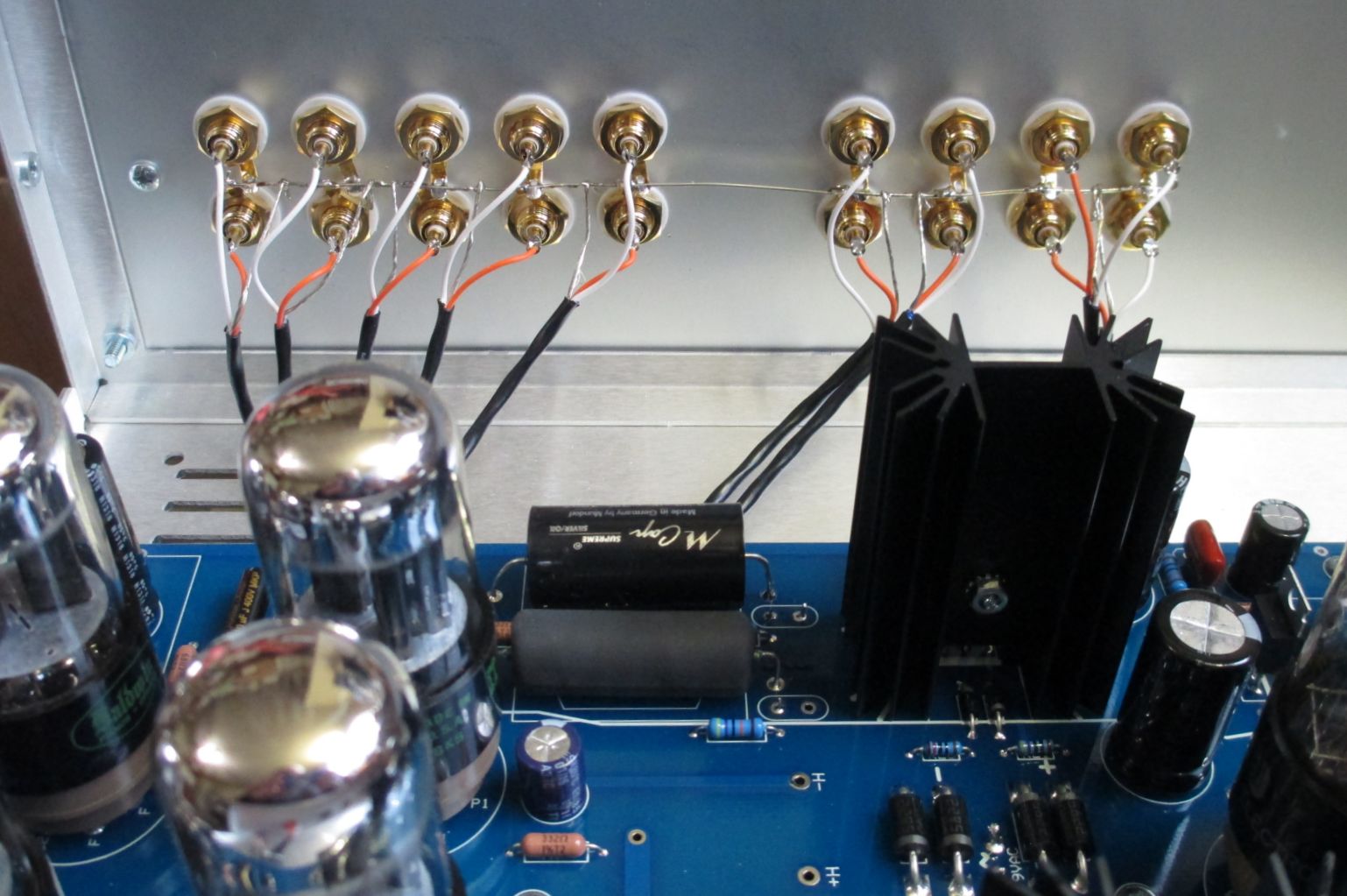

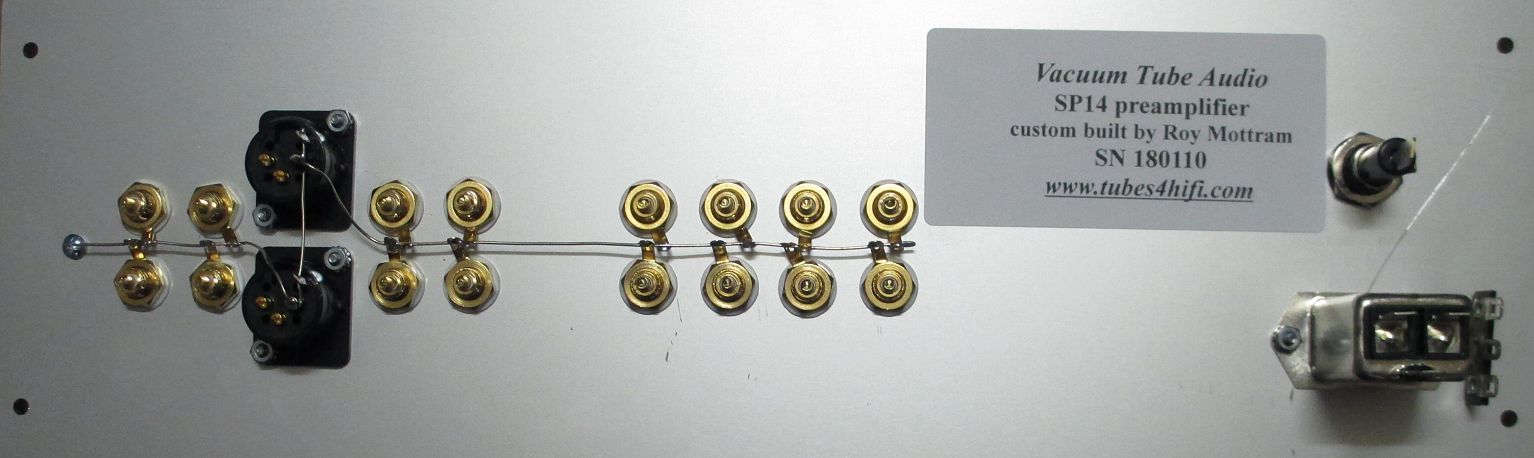

this preamp has XLR inputs

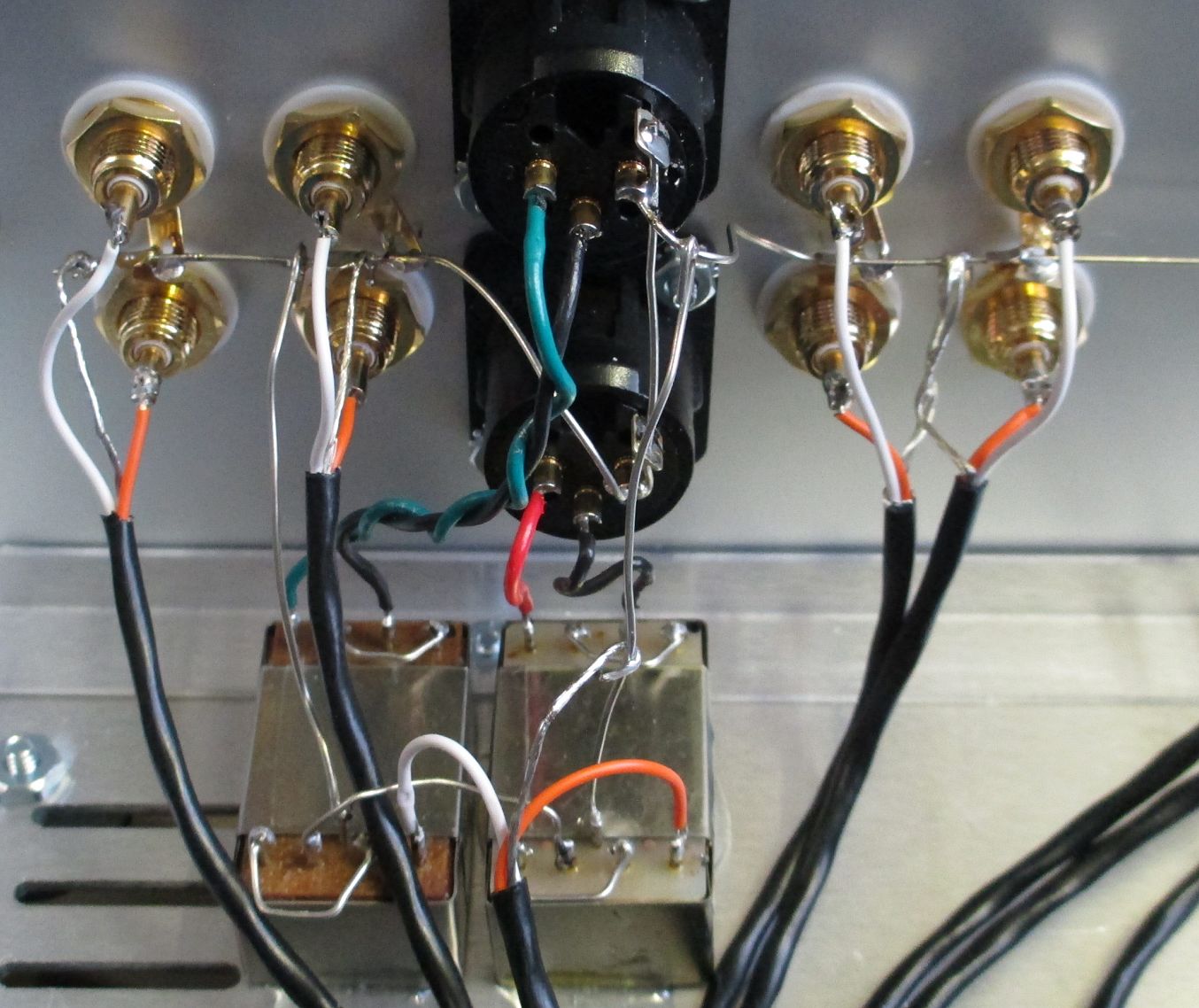

this preamp has XLR inputs - balanced to single ended transformers ($100 each)

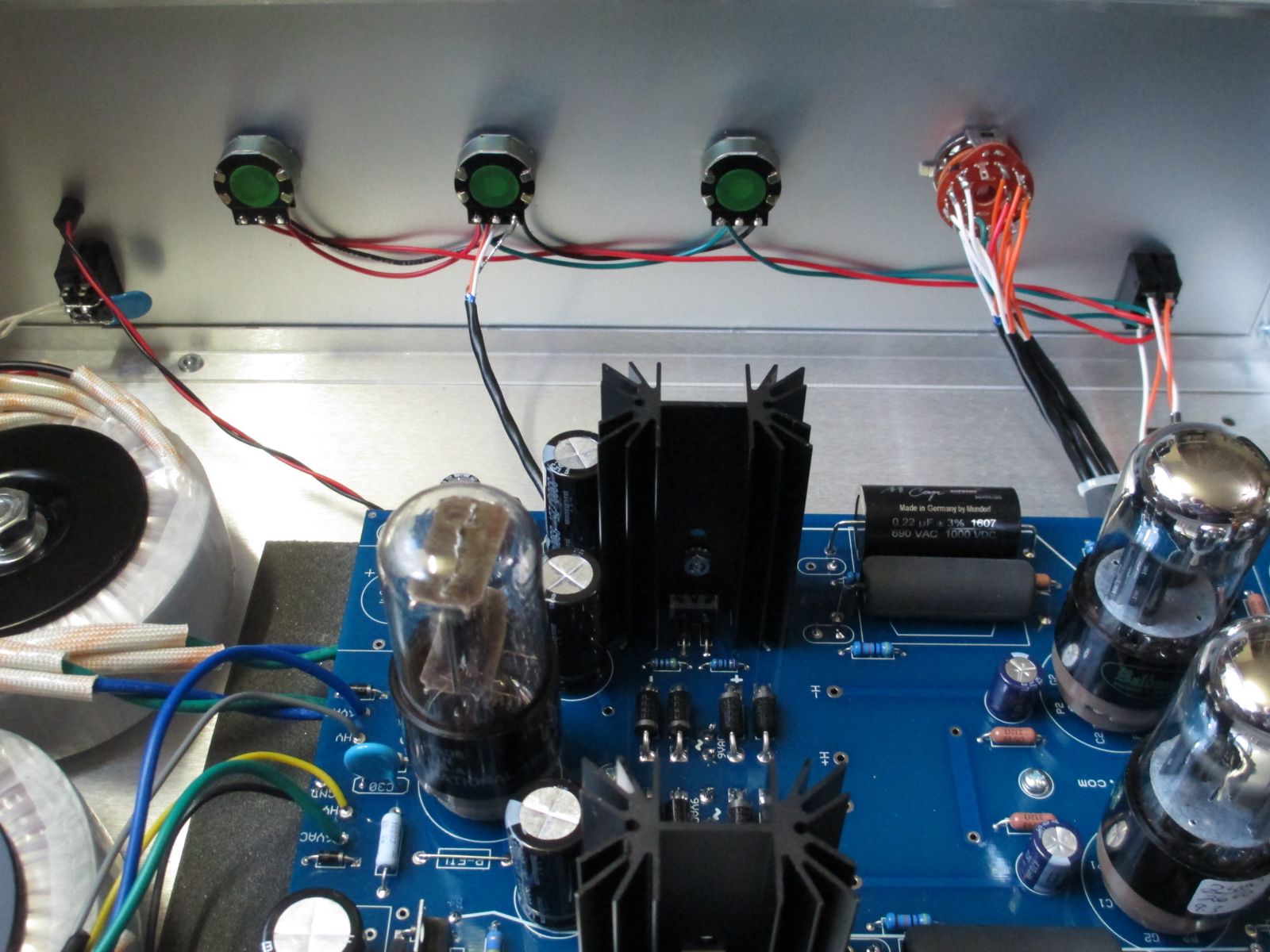

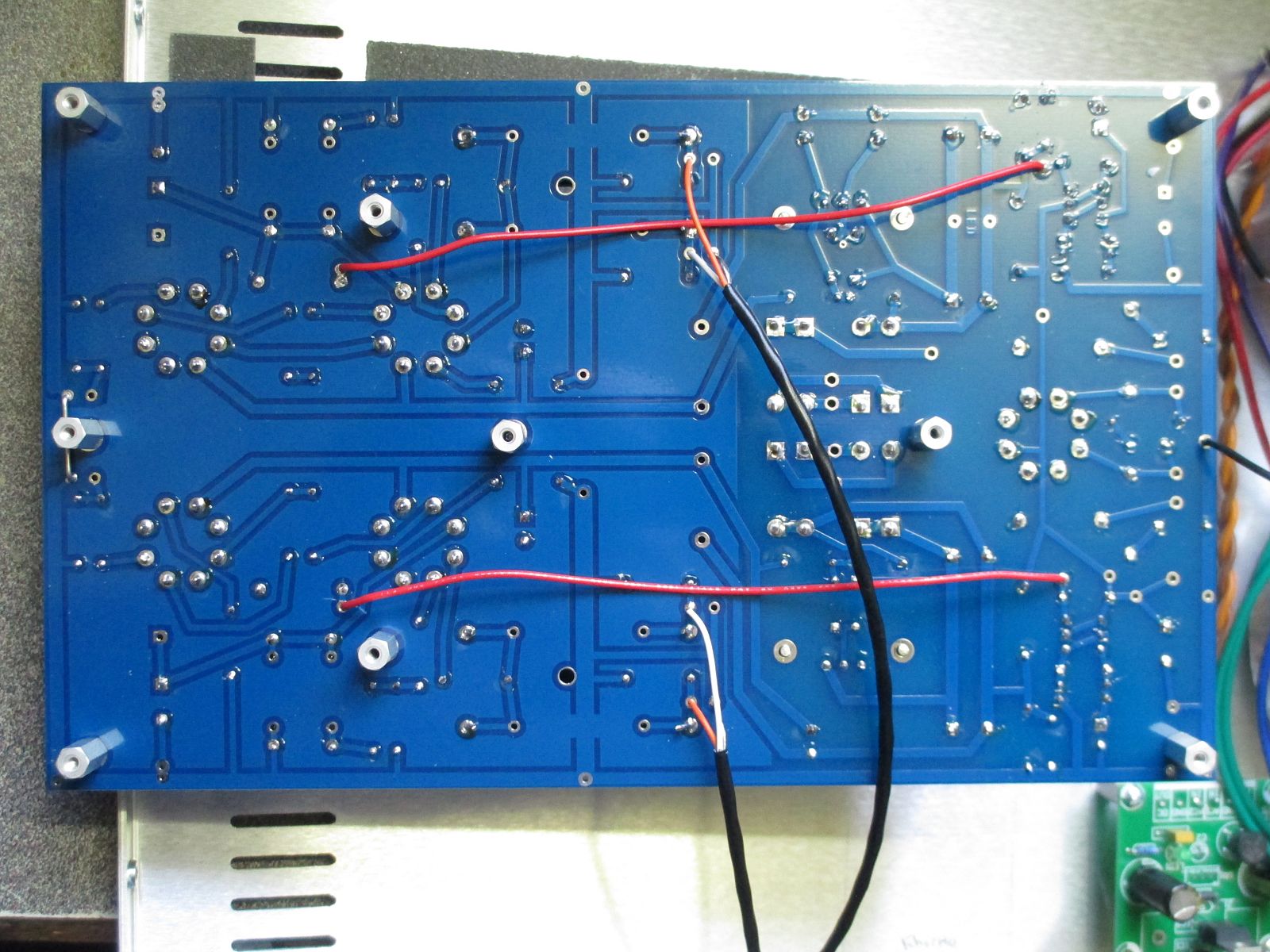

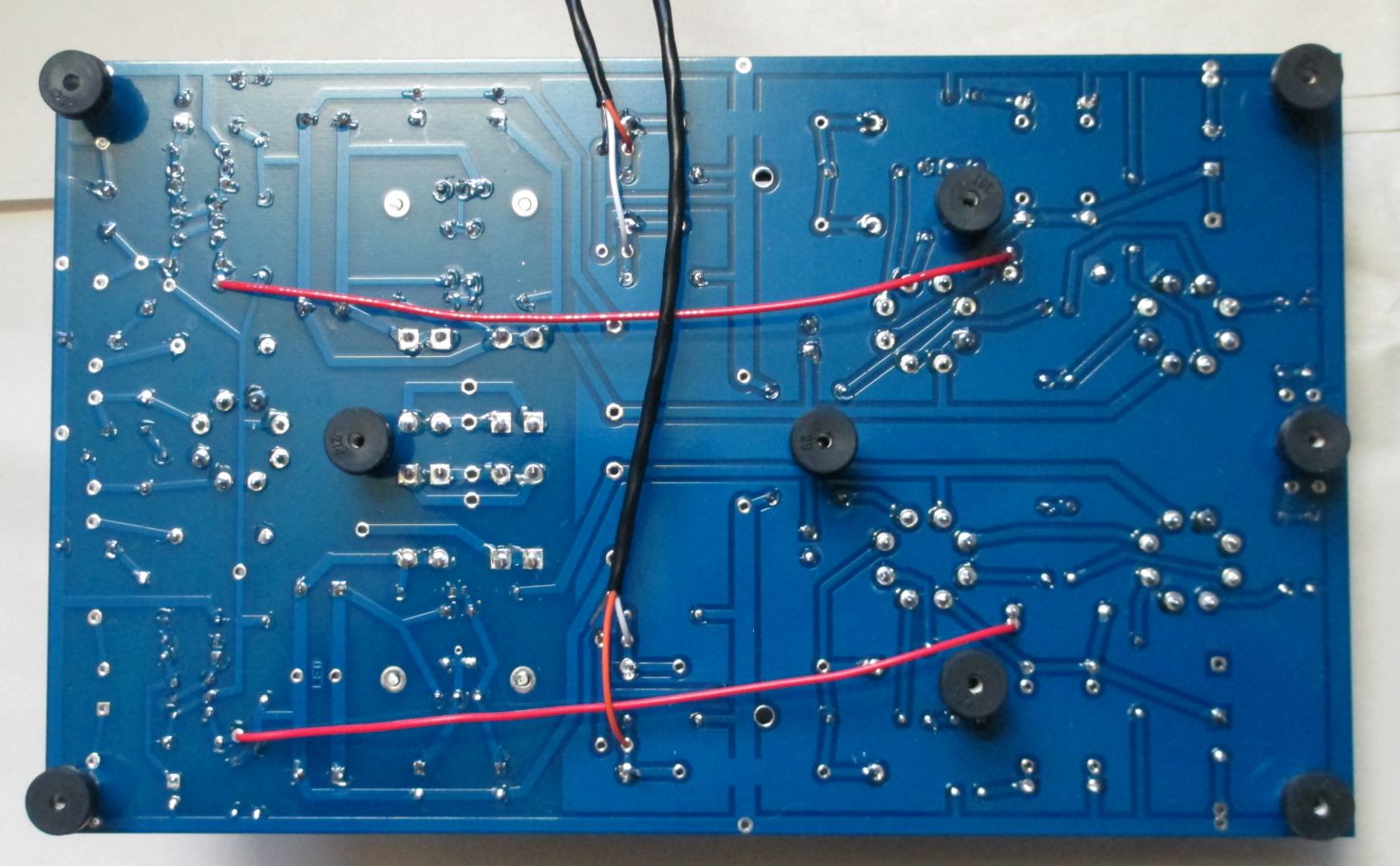

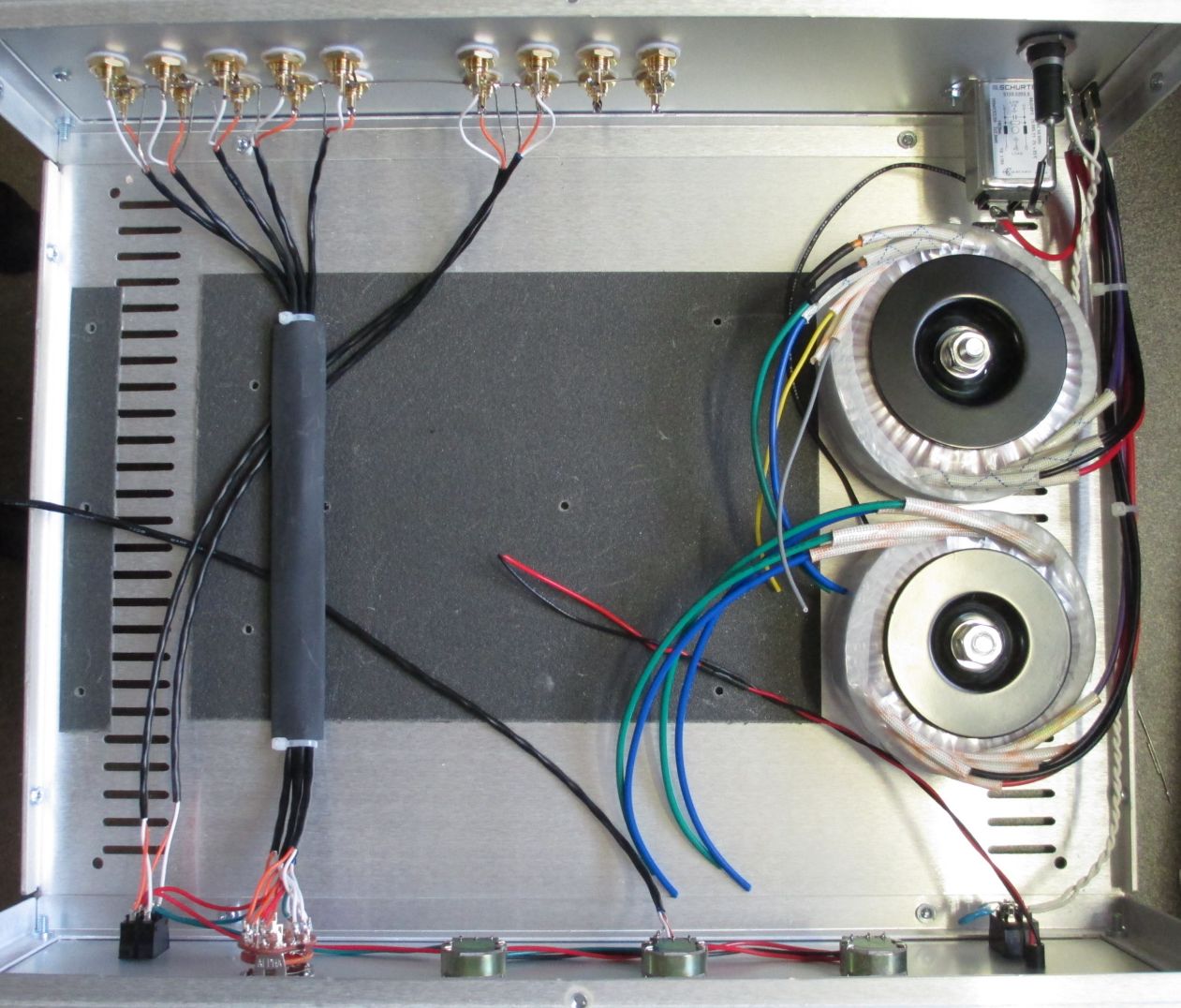

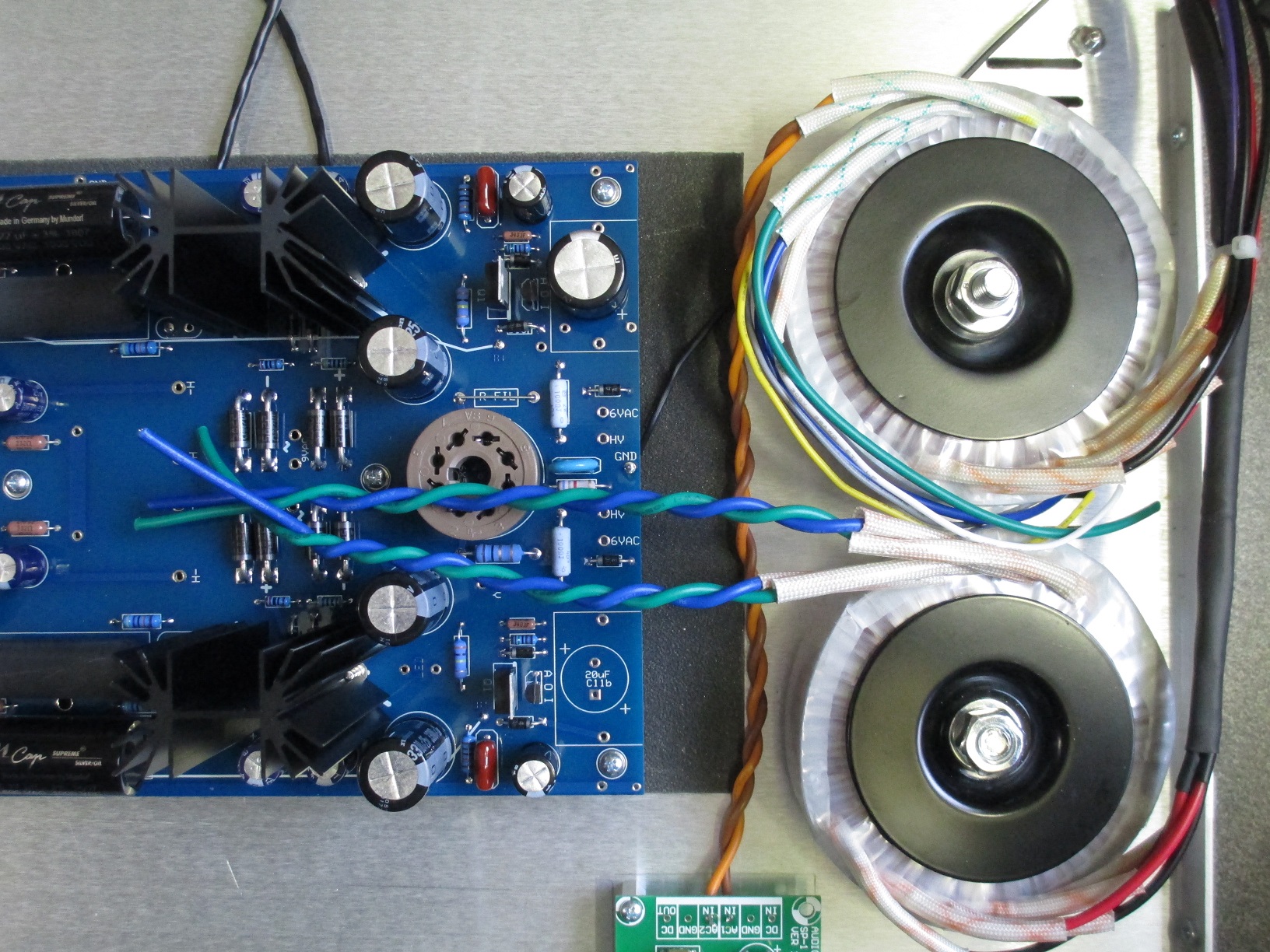

wiring finished


wiring finished

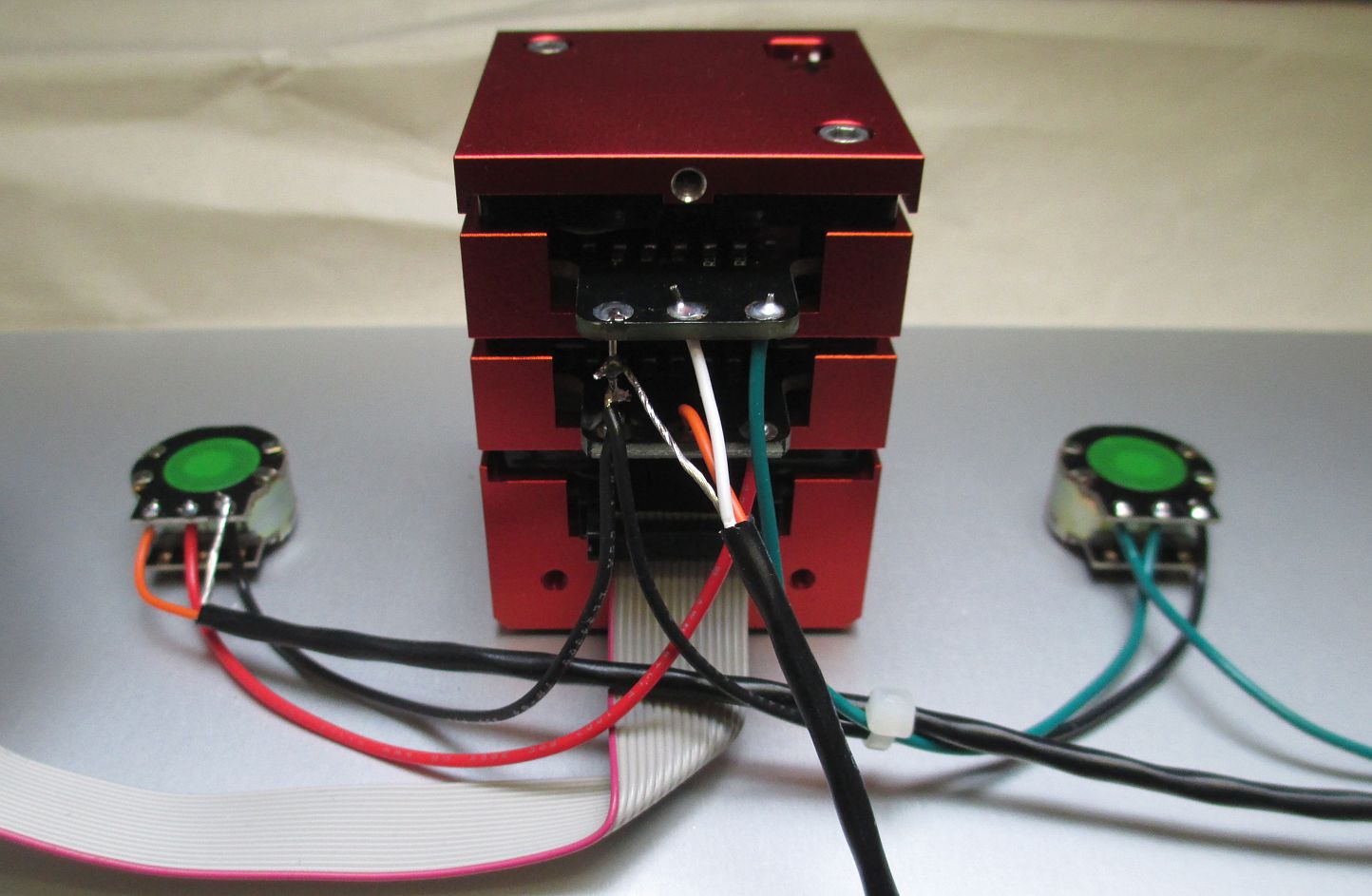

Khozmo remote volume


Khozmo remote volume

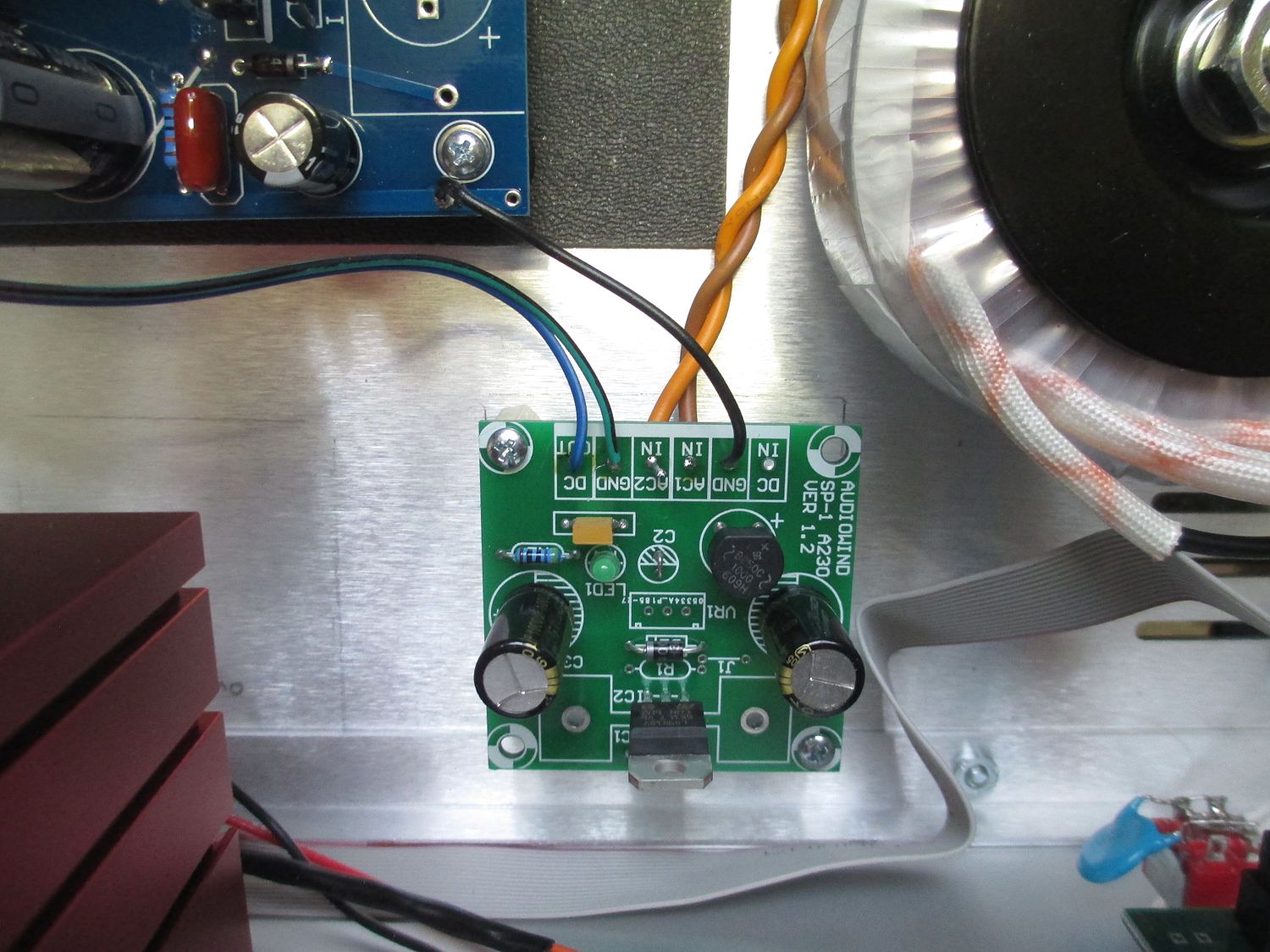

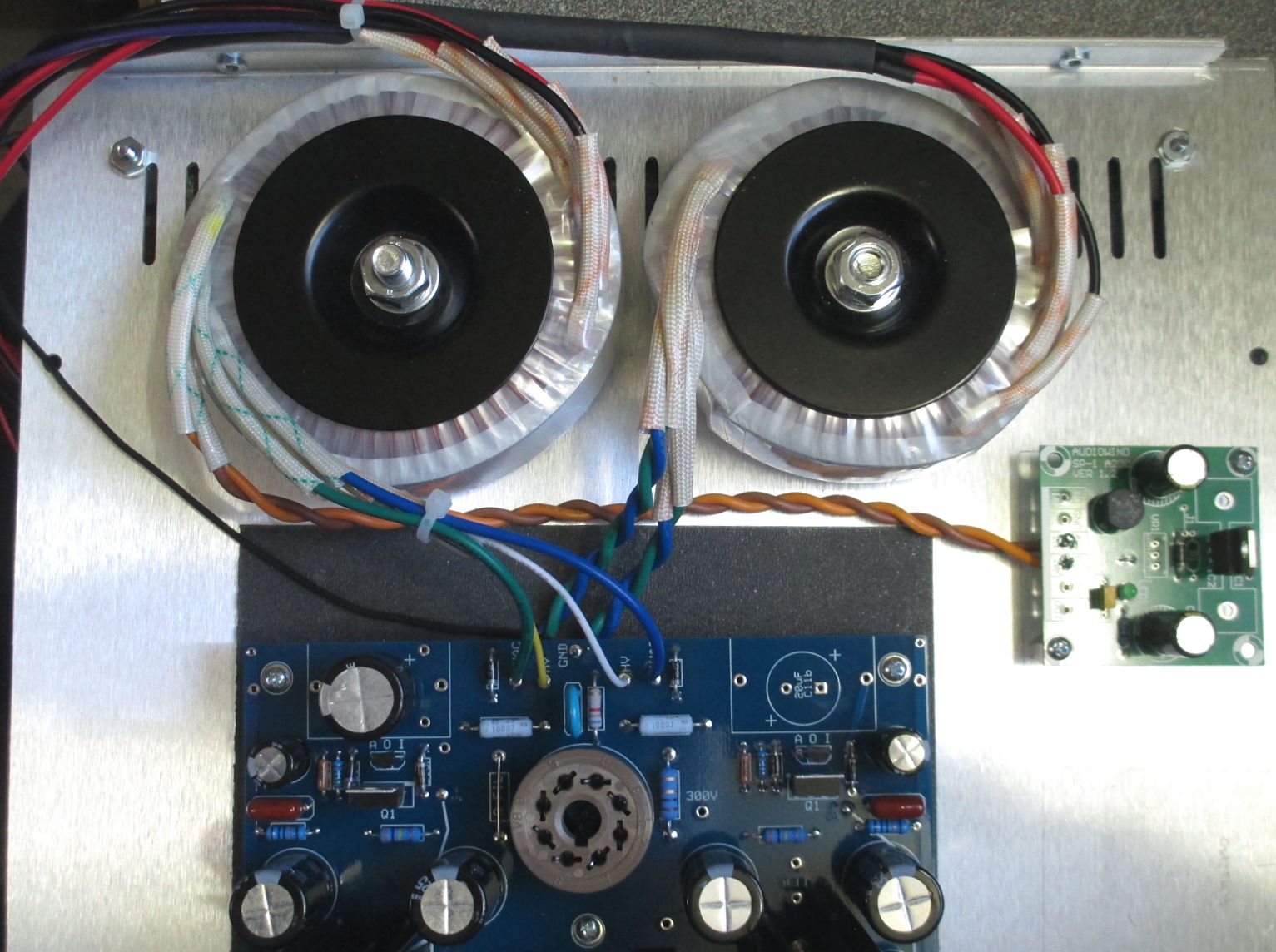

power supply for Khozmo remote


power supply for Khozmo remote


return back to SP14 main page

here are some photos to help you identify the parts to build the SP14


inquire about any other options or modifications you might want via email . . . .

send email to ROY at: info@tubes4hifi.com
